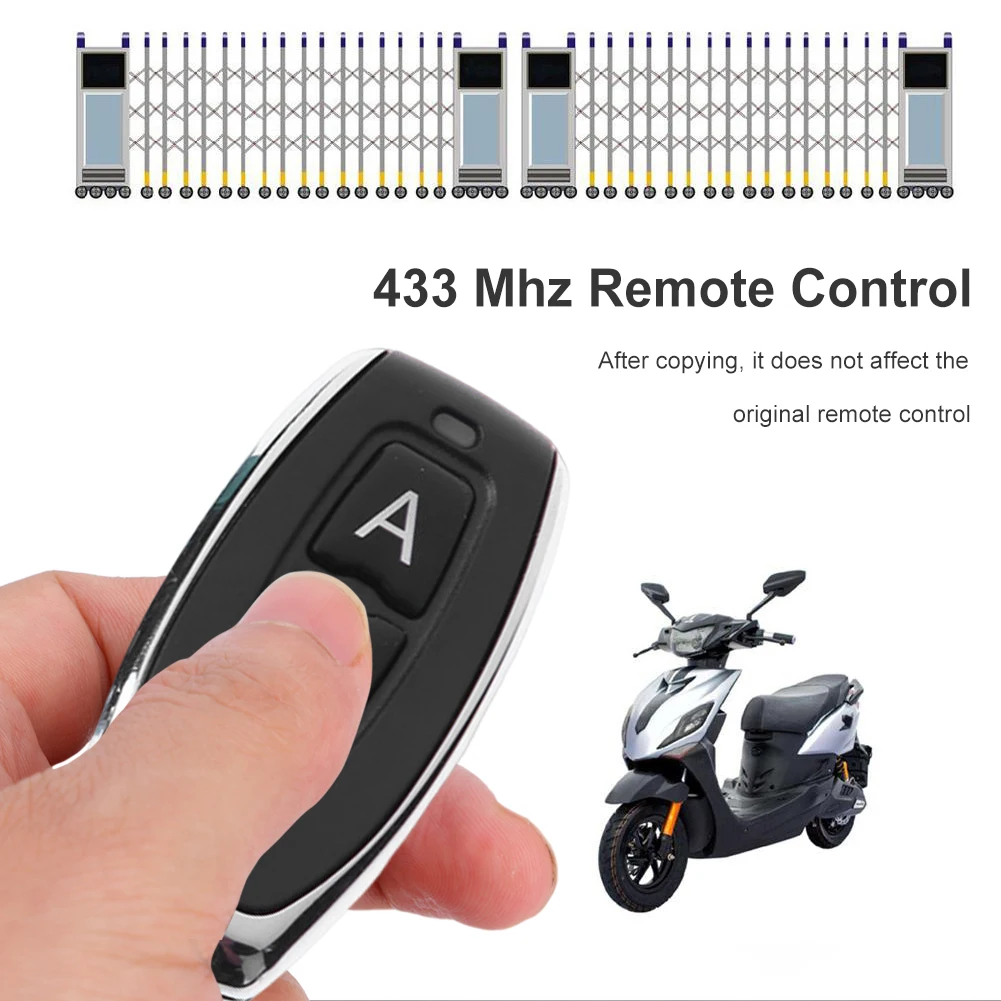

Gate Remote Control Switch Wireless Remote Control Relay Receiver 1CH Controller 433MHZ Universal Remote Control DC12V for Gate LED Garage Door
Feature:
1. Wide Application Range: This gate remote control switch is equipped with an intelligent microprocessor control, making it suitable for various applications such as garage door control, lighting control, remote-controlled curtains, access control systems, and motor control systems.
2. Easy Installation: With its compact size and simple installation process, this wireless remote control ensures convenience, safety, and reliability.
3. Learning Method:Power on the remote switch, and the indicator light stays on continuously.Long press the learning button for 2 to 3 seconds until the indicator light automatically turns off.Release the learning button and press any key on the remote control.The indicator light flashes rapidly 5 times, indicating a successful learning process.Note: This controller can learn up to 16 different codes including fixed codes and learning codes from various remote controllers. If the limit is exceeded, it will overwrite the earliest learned remote controller.
4. Clearing Method:Hold down the learning button for approximately 8 seconds.The indicator light of universal remote control will go from off to a steady long light, indicating a successful clearing process.

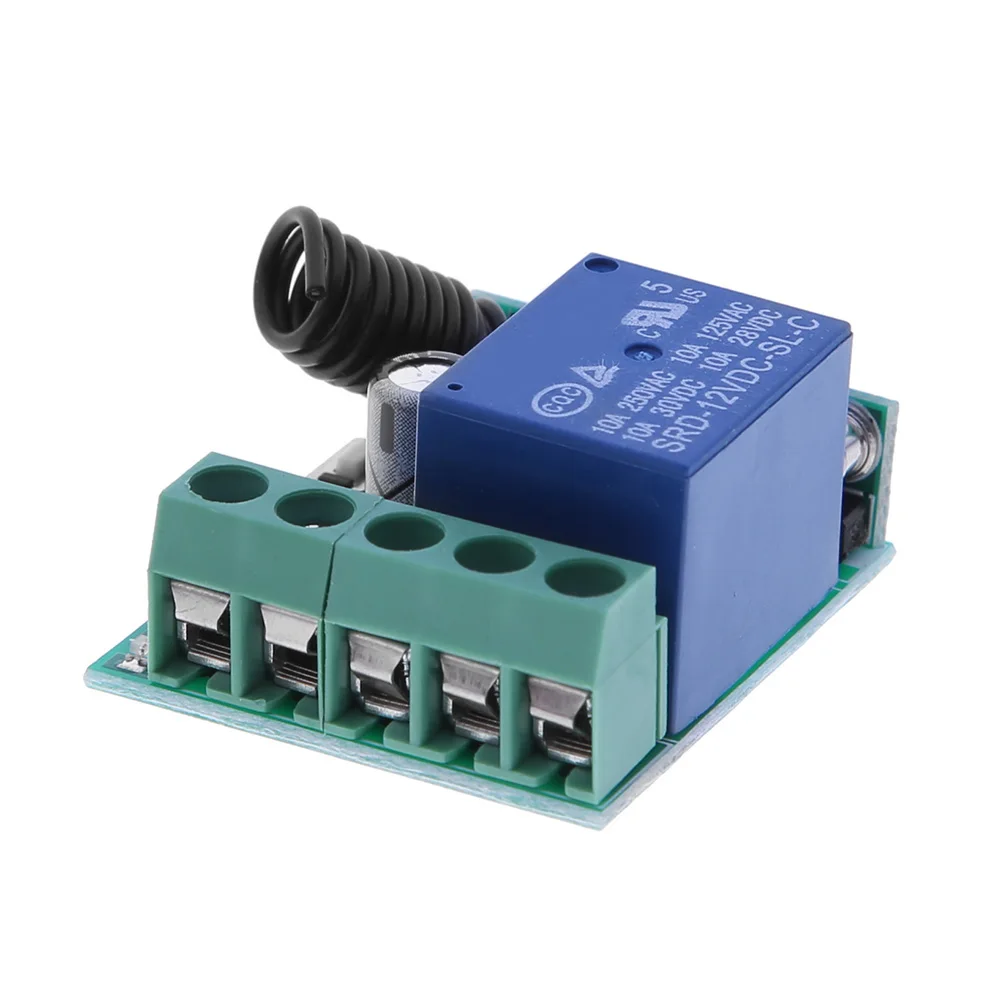

5. Connection Method:Connect to 12V DC Output: Connect the input terminal of the learning-type 12V single-channel remote switch to a 12V DC power supply.Connect the common terminal of the output end to the positive pole of the 12V power supply.Connect the positive pole of the light bulb to the normally open terminal of the output end.Connect the negative pole of the light bulb to the negative pole of the power supply.This simple circuit allows you to control the on/off state of the light bulb.




Specification:
Certification: NONE
Origin: Mainland China
Use: Switch
Wireless Communication: RF
Model Number: Gate Remote Control Switch
Package: Yes
Channel: 1
Working voltage: DC12V
Working temperature: -40 degrees to 80 degrees
Working frequency: 433MHZ
Receiving sensitivity: ≥-95dB
Output mode: jump switching, inching, self-locking, interlocking (adjustable)
Remote control distance: 20-40 meters
Product Size:
Switch size: 40*40*25mm 1.57x1.57x0.98inch
Controller size:55*30*12mm 2.17x1.18x0.47inch
product weight:

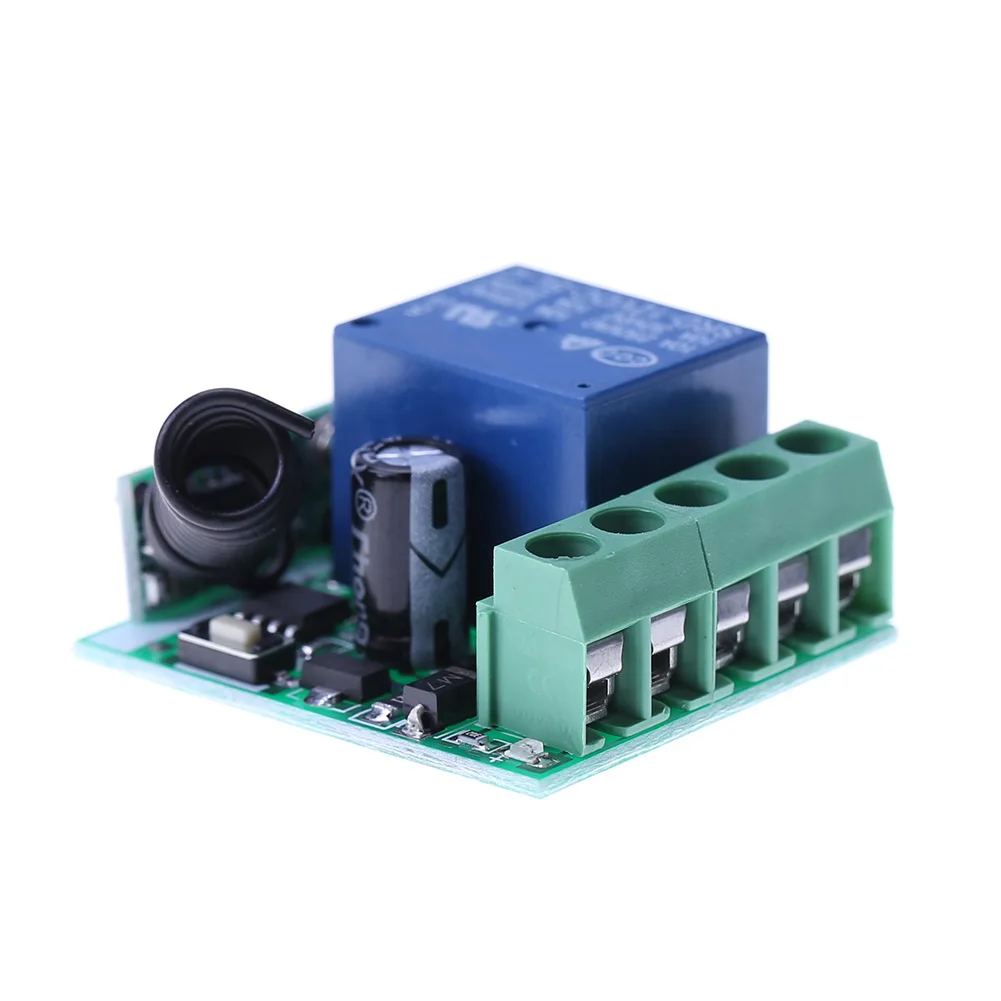

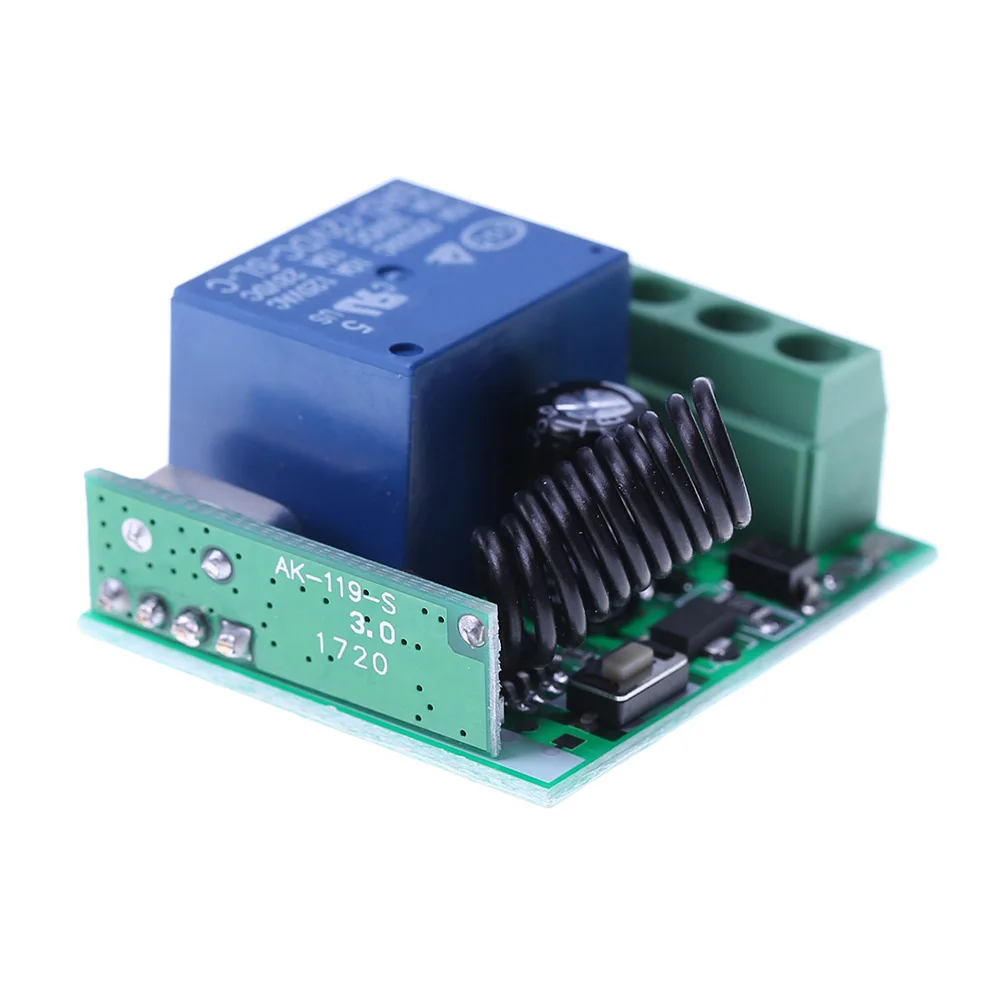

Control board: 24g

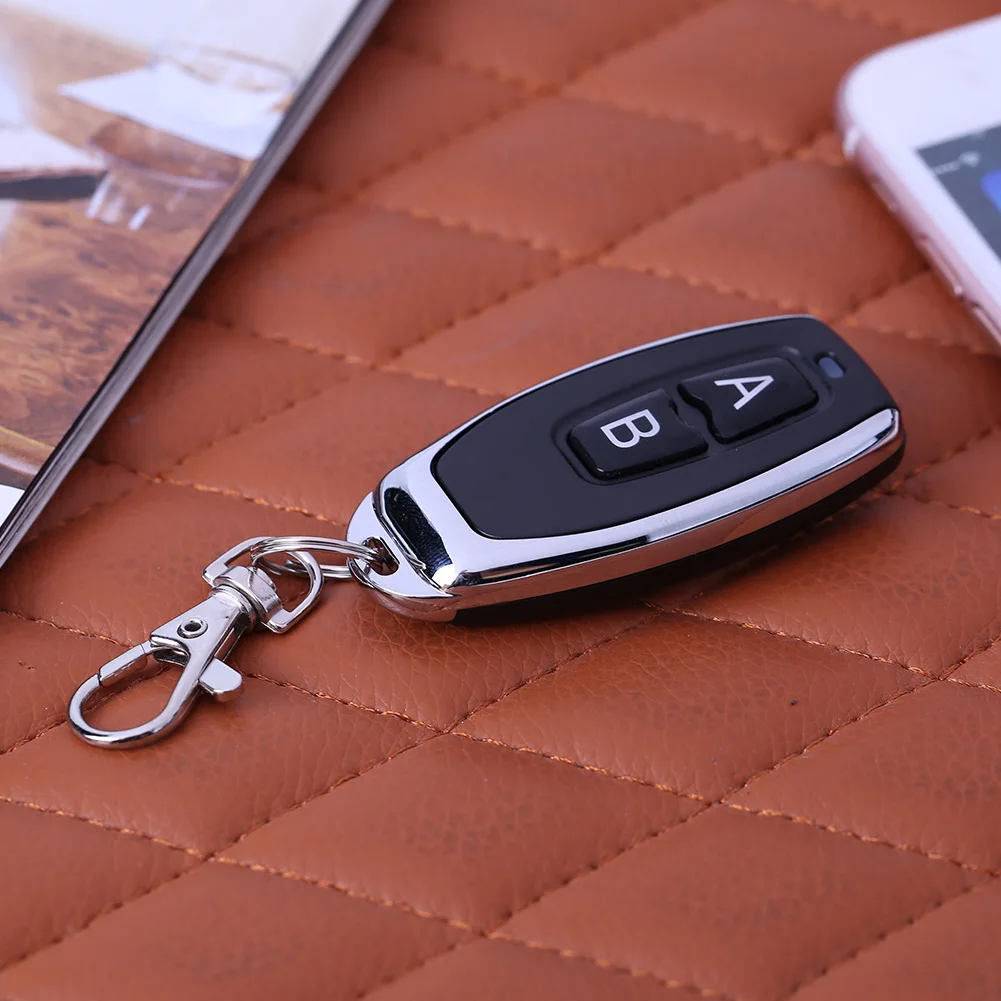

Remote control weight: 30g
Product material: ABS

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
